Product Overview

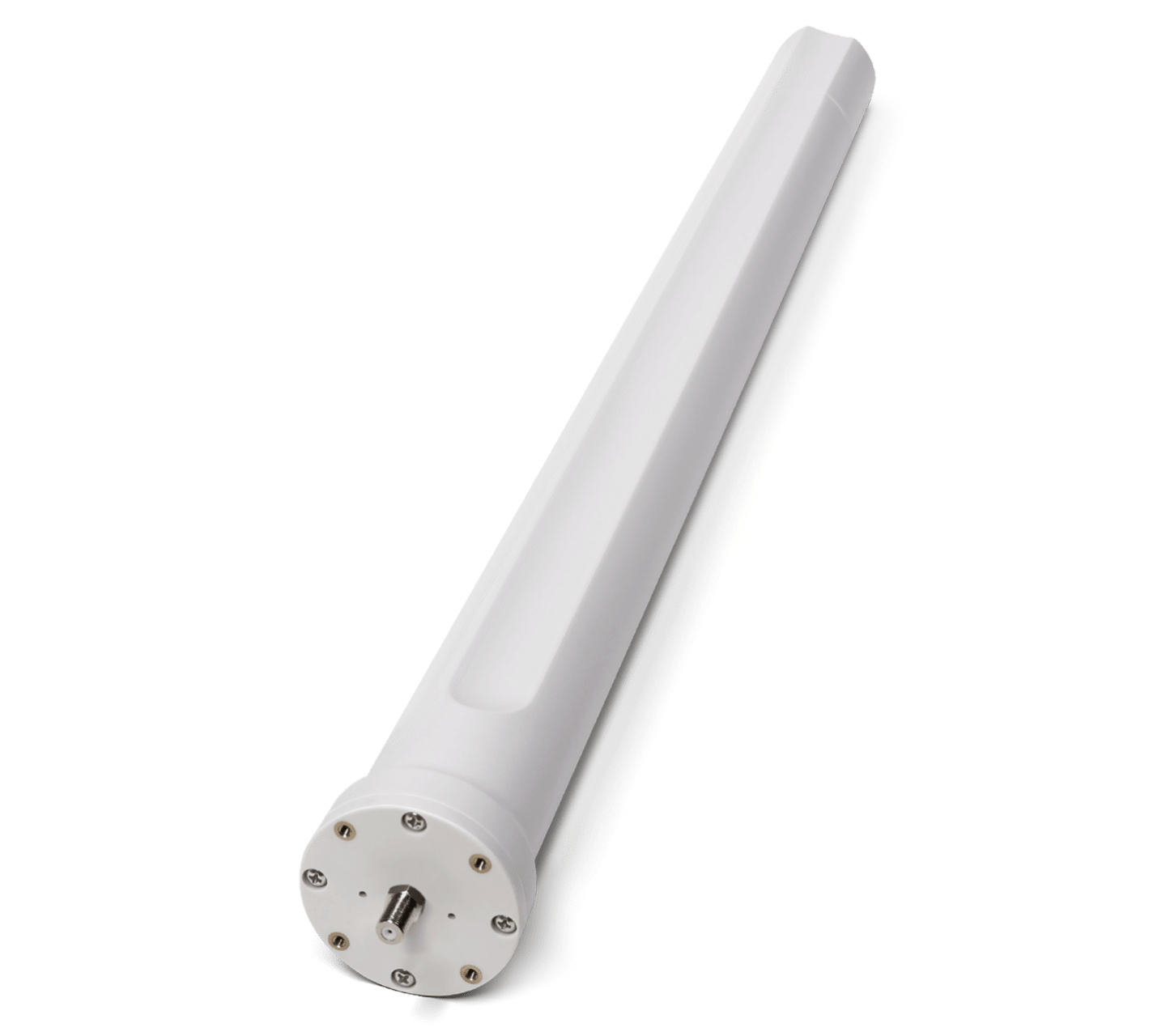

The Wilson 25” High Gain Outdoor Omni Antenna (310001) captures the strongest 5G and 4G signals from all directions. Delivering up to 4x more power than the standard omni with gain up to 9 dBi, it provides greater focus and extended reach. This enhances reliability and stability in interference-prone and weak signal areas. Supporting 617-3800 MHz, it’s ideal for pairing with cellular signal boosters, fixed wireless access (FWA), and IoT solutions. Rugged, IP65-rated build ensures long-term durability and consistent performance in harsh environments.
What's Included
- 25” High-Gain Omni Antenna
- Mounting Hardware
Technical Specifications
| SKU | 310001 |
| Frequency Band (MHz) | 617-960, 1427-1517, 1710-2700, 3400-3800 |
| Peak Gain (dBi) | 6, 6, 9, 8 |
| VSWR | <2.5:1< /td> |
| Polarization | Vertical |
| Impedance ( ) | 50 |
| Max Power (W) | 10 |
| DC Short | Yes |
| Connector | N-Type (F) |
| Dimensions (in / mm) | 25x2.7 / 635x71 |
| Packaged Dimensions (in / mm) | 27.5x3.7x3.5 / 700x95x90 |
| Packaged Weight (lb / kg) | 3.1 / 1.41 |
| Temperature Range ( / ) | -40 to 176 / -40 to 80 |
| Rated Wind Velocity (mph/kph) | <100 / <160 |
| Radome Material | ABS (Halogen Free) |
