Poynting is a world-class leader in innovative antennas for cellular, WiFi, GPS, and more. Whether for signal boosters, cellular routers, or vehicle gateways, Poynting has an antenna that’ll enhance your wireless connectivity. Their antennas can be used across all industry sectors, including residential, industrial, automotive, M2M/IoT, marine, and mining.
The PUCK is a high-performing, multi-frequency, omnidirectional antenna with up to 7.5 dBi of gain. Rugged, weatherproof design ensures antenna can withstand any weather conditions. There is a PUCK available for any situation. Depending on configuration, antenna can support 5G, LTE, CBRS, WiFi, and GPS within a single housing. SISO and MIMO options available. Perfect for transportation, marine, and IoT/M2M use.
*Varies per configuration
Poynting’s ultra-wideband MIMO omnidirectional antenna offers up to seven antennas in one – four cellular, two WiFi, and one GPS/GLONASS. Provides max gain of up to 6.2 dBi for 5G/4G/LTE, 7 dBi for WiFi, and 21 dBi for GPS. Rugged, water-resistant exterior allows secure installation on commercial/industrial vehicles, vessels, M2M and other IoT systems. Multiple MIMO antenna configurations available for any situation.
*Varies per configuration
The Poynting XPOL-1-5G is a cross-polarized omnidirectional MIMO antenna designed for cellular hotspots and routers. Wideband, it captures 5G, 4G, and LTE signals operating within the 617-3800 MHz frequency bands. With up to 3.5 dBi of gain, it’s capable of doubling data speeds. Perfect for urban, rural, agricultural, and commercial applications. Install it inside or outside. Robust enclosure makes antenna weather, dust, and vandal resistant. It’s available in 2x2 or 4x4 MIMO variants.
The Poynting OMNI-85 is an omnidirectional, wideband, direct-connect whip antenna for cellular routers with SMA female connectors. Using an adapter, it can also fit TS-9 routers. It supports 4G/LTE and low-to-mid band 5G frequencies with a peak gain of 3.5 dBi. That’s more than most bundled whip antennas. Knuckle base allows for multiple angles of deployment.
The Poynting OMNI-121 is a medium gain omnidirectional antenna. It captures all 4G/LTE signals from every direction and boosts it by up to 6 dBi, delivering a stronger signal to your signal booster, cellular router, or M2M/IoT device from any carrier. It’s also 2.4 GHz WiFi compatible. Antenna is a popular choice amongst installers due to its versatile base station capabilities.
The Poynting OMNI-280 is a small, but mighty omnidirectional cellular antenna for M2M and IoT applications. Featuring up to 4 dBi of gain, antenna delivers over twice the signal strength, improving transmission power between machines. Ultra wideband, it supports 4G/LTE, 5G CBRS, and 2.4 GHz WiFi. Design allows for an easy indoor or outdoor installation on a wall, desk, pole, or vehicle.
The Poynting OMNI-292 is a high-gain omnidirectional antenna that covers 4G, LTE, and 2.4 GHz WiFi frequency bands. It’s one of the few omni antennas that offers consistent high gain across a wide frequency range. Maximum gain is 8 dBi, which more than quadruples the signal reaching your signal booster or router. Rugged enclosure ensures great performance during harsh weather conditions. Recommended for home, office, and M2M applications.
The Poynting OMNI-293 is a high-performing antenna that supports 5G, 4G, and LTE signals in the 617-3800 MHz range. It’s also 2.4 GHz WiFi compatible. Omnidirectional, it captures all available cellular signals from base stations in any direction. With peak gains of 9 dBi, antenna can deliver significantly stronger signal to your cellular booster, router, or IoT device. It’s suitable for home, commercial, and M2M applications in urban or rural areas.
The Poynting OMNI-296 is designed to provide better WiFi performance and flexibility. Antenna is dual-band and 5G ready. Pair it with cellular WiFi access points or use it to build a point-to-point network. Compliant with IEEE 802.11b/g/n/ac, it works with old and new WiFi technologies. It offers maximum gain of 6 dBi on the 2.4 GHz band, 7.5 dBi on the 5 GHz band, and 7 dBi on the 3.5 GHz 5G CBRS band. Rugged ABS housing makes antenna great for factories, open-cast coast mines, oil rigs, and much more.
The Poynting OMNI-600 is an improved omnidirectional 2x2 MIMO antenna. Ultra-wideband, it covers 5G/4G/LTE cellular signals ranging from 410-3800 MHz and 2.4 GHz WiFi with peak gain of 6.2 dBi. Supporting the 450 MHz frequency and 3.5 CBRS band ensures antenna will work for the next decade across various countries. Excellent balanced gain across all frequencies makes it a true high-performance antenna, significantly improving uplink and downlink. It’s designed to be used with signal boosters, cellular routers, and IoT devices in urban and rural areas.
The Poynting UDAS-1 is a cross-polarized 2x2 MIMO leaky feeder antenna. Install it between your router and outdoor antenna in any building or RV to improve your router's coverage footprint. It can deliver reliable 5G/4G/LTE signals as well as 2.4/5 GHz WiFi wherever you need it. Omnidirectional radiation pattern aims to cover an entire room.

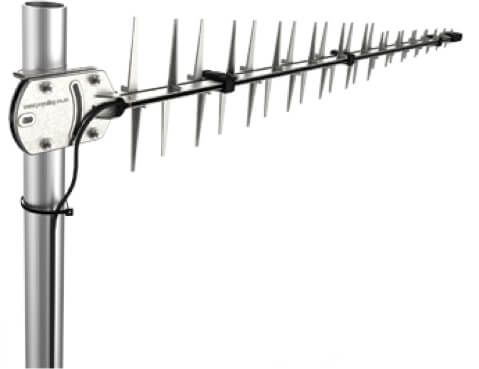

The Poynting LPDA-92 is a high-gain directional antenna for cellular signal boosters, modems, hotspots, and more. It offers futureproof wideband operation from 698-3800 MHz, covering LTE, 4G, 5G CBRS, and 2.4 GHz WiFi. It can reach base stations up to 5 miles away, capture any cell signal within its 50° beam, and apply up to 11 dBi. Features consistent high-gain performance across all supported bands. While designed to keep communication systems connected in rural areas, it’s usable in any signal environment.
The Poynting EPNT is a 5G/4G/LTE/WiFi and Band 71 antenna with up to 5 dBi of gain. Choose from either 2x2 or 4x4 MIMO. The EPNT comes in a rugged IP67 and IK70 penguin enclosure, capable of housing a small 5.5 in x 4.7 in x 1.9 in (140 mm x 120 mm x 50 mm) router. If you are looking for an antenna and router housing in one for marine, outdoor, or any harsh condition applications, the EPNT is your best choice. Router sold separately.
