Product Details

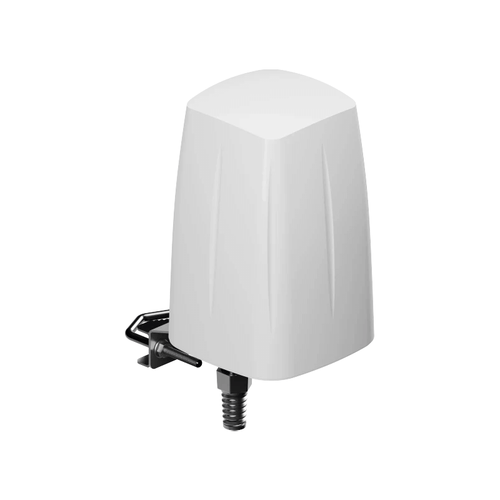

The Teltonika PR1ICC60 is a high-performance outdoor omnidirectional antenna designed to contain RUT9-series routers (RUT901, RUT906, RUT951, RUT955, RUT956). It supports LTE, WiFi, and GPS, ensuring strong, stable, and reliable connectivity. With an IP67-rated enclosure, it withstands harsh outdoor conditions, making it ideal for industrial applications. The integrated mounting bracket allows quick and secure installation on walls or poles, offering flexible deployment options for optimal setup.
What's In The box?
- 5G/LTE/WiFi/GPS Omnidirectional Antenna
- Mounting Bracket
Technical Specifications
| Teltonika Outdoor 5G/LTE/WiFi/GPS Antenna | |
|---|---|
| LTE ANTENNA | |
| Frequency Range |
617 ~ 960 MHz 1700 ~ 2700 MHz 3300 ~ 4300 MHz |
| Polarisation | Vertical |
| Radiation pattern type | Omnidirectional |
| Gain | Max 4.5 dBi |
| V.S.W.R | <2.50 |
| Impedance | 50 Ohms |
| Connector type and count | 4x SMA male |
| WI-FI ANTENNA | |
| Frequency Range |
2400 ~ 2500 MHz 4700 ~ 6000 MHz |
| Polarisation | Vertical |
| Radiation pattern type | Omnidirectional |
| Gain | Max 7.5 dBi |
| V.S.W.R | <2.00 |
| Impedance | 50 Ohms |
| Connector type and count | 2x RP-SMA male |
| GNSS ANTENNA | |
| Frequency Range | 1560 ~ 1610 MHz |
| Polarisation | RHCP |
| Gain | 28 dBi |
| V.S.W.R | <2.00 |
| Impedance | 50 Ohms |
| Connector type and count | 1x SMA male |
| Current consumption | 2.5 - 6.5 mA |
| Supply voltage | 2.5 - 6.5 VDC |
| MECHANICAL/ENVIRONMENTAL | |
| Cable | 6x RG316, 1x RG174 |
| Operating Temperature | -40 °C to 75 °C |
| Mounting Method | Wall, ceiling, mast |
| IP rating | IP67 |
| Weight | 1500 g |
| RoHS compliant | Yes |
| Dimensions | 7.422 x 2.688 in / 188 x 68 mm |
| UPC | 810005961677 |
