About This Product
Repeater technology that goes beyond the code.
SOLiD RESPONDER™ Public Safety Digital Repeater is a breakthrough public-safety solution that complies with today's fire codes and addresses new cellular colocation interference and FirstNet challenges.
SOLiD’s proven amplifier technology tackles many of today’s Public Safety in-building design and performance concerns by engineering a solution that meets all code requirements, including FirstNet frequencies to advanced noise cancellation, oscillation avoidance and automated filter selection that guarantees the best performance.
This dual-band, dual-mode repeater has a robust flexible design that simplifies traditional configuration issues and addresses today’s interference and performance challenges.
Integrating the battery backup control circuitry simplifies planning and affords system designers more battery choices, better performance, and considerable cost savings.
- NFPA/IFC Compliant
- FirstNet Supported
- Integrated Battery Charging and Alarming
- Patented "ZeroDelta" technology for enhanced oscillation protection
- Active DAS mode
- Enhanced Filtering for Commercial DAS Colocation
Who is this for?
In times of emergency firefighters, police, emergency medical services (EMS), and other disaster response agencies need reliable two-way communication to respond effectively.
|Solid Responder 700/800 Public Safety Digital Repeater|
|Output Power at Antenna Ports||700 DL : +33dBm (2W) |
800 DL : +33dBm (2W)
700/800 UL : +30dBm (1W) composite
|Output Power at Active DAS Ports||700 DL : -5dBm maximum |
800 DL : -5dBm maximum
|Gain Range per Band||DL: 65-95dB in 1dB steps |
UL: 65-95dB in 1dB steps
|Frequency Range||DL: 758-775MHz, UL: 788-805MHz |
DL: 851 - 861MHz, UL: 806 - 816MHz

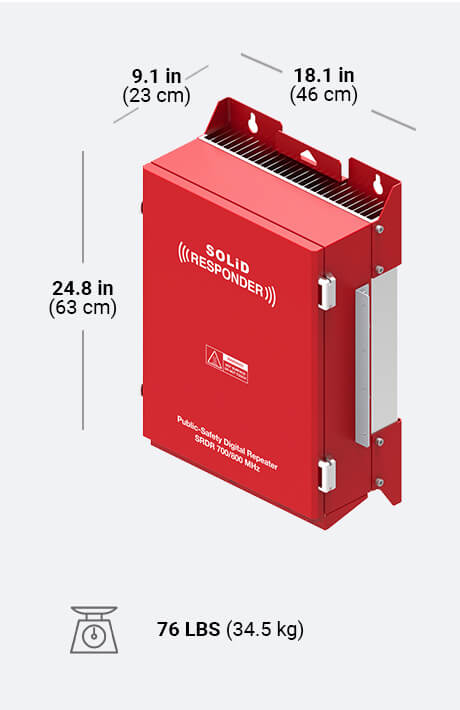

|Dimensions||24.8 x 18.1 x 9.1 (inches) / 630 x 460 x 230 (mm)|
|Weight||76 lbs. (34.5 kg)|
This is NOT a CONSUMER device. It is designed for installation by FCC LICENSES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.
Installation & Deployment
At Signal Boosters we provide full turnkey integration of in-building wireless (IBW) systems that amplify signal indoors, delivering the signal you need to get the job done. From the first call to post-project, Signal Boosters handles every detail personally in-house. Our team of RF engineers, system integrators, designers, and certified signal boost specialists take complete ownership of your project.
- Site survey
- Data analysis
- Floor plans
- Equipment & Pricing
- Installing equipment
- Monitoring & support
- SOLiD RESPONDER™ Public Safety Digital Repeater
- Power Supply
