Inhand Networks InVehicle G710 High-Performance Vehicle Gateway

SKU: InVehicle G710

Free Standard Shipping FREE Standard Shipping*
InHand Inhand Networks InVehicle G710 High-Performance Vehicle Gateway
$619.99
  • Compatible with all vehicle type
  • High-Speed LTE Cat 6 Connectivity
  • 2.4GHz/5GHz Gigabit WiFi and Ethernet
  • Remote Device Management, Tracking, and More
  • Certified for Use with AT&T, Verizon, & T-Mobile
  • View product technical specifications
Support Guarantee
USA based
customer support.
Shipping Guarantee
FREE shipping
on all orders.
Refund Guarantee
30 day money-back
guarantee.
Warranty Guarantee
1 year manufacturer's warranty included.
Inhand Networks InVehicle G710 High-Performance Vehicle Gateway
$619.99

Read Featured Reviews From Actual Customers Read All Reviews

InHand, Global Leader of Industrial IoT

For 19 years, InHand Networks has been developing and manufacturing innovative wireless solutions, including vehicle gateways, Machine-toMachine routers, and more. Their products are designed with the highest industry standards, ensuring superior internet connectivity and secure real-time communication between machines.

The InVehicle G710 is a revolutionary all-in-one cellular gateway for fleet management and reliable data connectivity on the go. High-speed WiFi, GPS, Bluetooth, and Cloud-Based Operation Supervision, make it perfect for commercial vehicles (Buses, Trains, Police Cars, Ambulances, SemiTrucks, etc.), as well as RVs, Campers, and House Boats. Will work with AT&T, Verizon Wireless, and T-Mobile networks.

710ST1
710ST2

High-Speed, Reliable, & Secure Network Access

Whether transporting goods or traveling with the family, connectivity on the go is vital. The IV G710 provides high-speed 2.4GHz/5GHz WiFi and Ethernet connectivity, ensuring you, your vehicle, and passengers receive a reliable connection on the road for fast data transfer and GPS uptime. With Dual-SIM capabilities, drivers and passengers will receive continuous data relatively everywhere for all connected devices. If you’re out of range from one network, the IV G710 will automatically switch to the second network, ensuring constant connectivity.

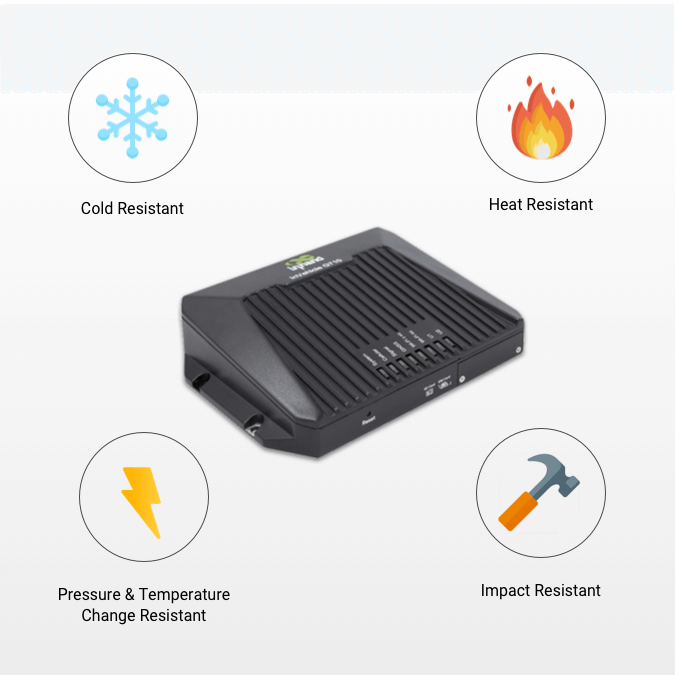

Designed to Work Where You Need It

With its industrial-grade design, the IV G710 is built to provide highquality connectivity and diagnostics in even the most challenging vehicle environments. It can operate in temperatures as low as -22°F and as high as 158°F. It’s also splash, dust, shock, vibration, and humidity resistant.

710ST3
710ST4

Reliable Fleet Management

The IV G710 is the ultimate fleet management tool. It uses GPS and CAN bus for accurate vehicle tracking and real-time vehicle diagnostics. You’ll be able to detect developing problems ahead of time, improving safety and reducing operational costs. It also uses an integrated 3D accelerometer and gyroscope to monitor dangerous driving behaviors, like speeding, sudden braking, and sharp turns, giving you instant alerts if anything goes wrong.

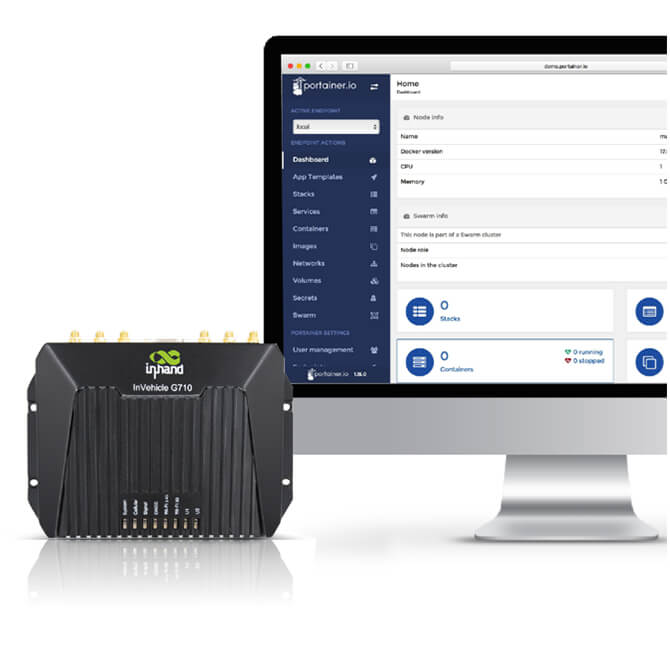

Customizable Platform for Your Unique Needs

The InVehicle G710 allows easy platform customization to meet your needs. With its various integration options (FlexAPI, RestAPI, TCP/UDP), it's simple to integrate with third-party vehicle telematics platforms to manage, monitor, and track your vehicles with ease. The G710 also supports Python3, Docker, AWS, Azure, and other IoT cloud services, enabling you to quickly develop and deploy custom applications for your fleet management needs.

710ST5
InHand InVehicle G710 Details

Superior Internet Connectivity!

InHand’s InVehicle G710 is a new generation of vehicle gateway routers, certified for use with AT&T, Verizon Wireless, and T-Mobile. It has everything you need for uninterrupted network access, asset tracking, and fleet management:

  • Features LTE CAT6 high-speed WAN, dual-band 2.4G/5G Gigabit WiFi, and Gigabit Ethernet, providing the vehicle and passengers with a reliable network
  • Integrates LTE, GPS, GNSS, and inertial sensor, for accurate real-time location tracking
  • Uses an accelerometer and gyroscope to monitor dangerous driving behaviors
  • Supports OBD-II and J1939 CAN Bus protocols to track the health of your vehicles and facilitate preventive maintenance

If you’re looking for a reliable way to keep yourself or your drivers connected on the road with state-of-the-art fleet management tools, the G710 is the answer. Whether you have an RV, camper, houseboat, or a fleet of buses, trains, police cars, ambulances, or semi-trucks, the G710 will deliver superior connectivity while traveling or transporting goods.

Dual-SIM technology ensures all data demanding devices are connected relatively everywhere. If the vehicle is out of range from one network, the IV G710 will automatically switch to the second network, resulting in uninterrupted navigation and the constant flow of time-sensitive information. This also ensures your fleet management platforms receive real-time data on location, diagnostics, and driving behavior, giving instant alerts if anything goes wrong.

The G710 can easily be integrated with any 3rd party telematics platform, allowing you to get live stats on location, speed, fuel consumption, alarms, and more. If customized applications are needed to maximize fleet management, the G710 supports Python3, Docker, AWS, Azure, and other IoT cloud services, to do so. You’ll also have access to InHand’s free Device Manager platform, where you can have centralized control over multiple InHand devices and monitor their signal strength, bandwidth, data usage, and more.

Everything you need for reliable in-vehicle WiFi, diagnostics, and tracking, is included in the kit.

  • LTE CAT 6
  • Speeds Up to 1000 Mbps
  • 2.4GHz/5GHz WiFi Connection
  • Gigabit Ethernet
  • Location Tracking
  • Real-Time Diagnostics
  • Monitors Driving Behavior
  • For Automobiles and Transport Service Vehicles
  • Works with AT&T, Verizon Wireless, & T-Mobile
  • Free InHand Device Manager Platform
  • Supports 3rd Party Telematics Platforms
  • Compatible with AWS, Azure IoT Hub, & Others
Technical Specifications
\
InVehicle G710 Software Specifications
Network Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAP V2
LAN Protocol ARP, Ethernet
Network Protocols
IP Applications IPv6, Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP, Portal
IP Routing Static routing, RIP, OSPF, BGP, IGMP Proxy
Network Security
Firewall SPI, DoS attack defense, multicast/Ping probe filter, ACLs Supports NAT, PAT, DMZ, port mapping, virtual server
User Level 2 levels: administrator; read-only
AAA Local authentication, Radius, Tacacs+, LDAP
CA Certificate PEM, PKCS12, SCEP
VPN IPsec VPN, L2TP, PPTP, GRE, OPENVPN, CA
Reliability
Backup Floating routing, VRRP, interface backup
Link Detection heartbeat packet to detect, auto redial when disconnected
Watchdog Runs self-detection and auto-repairing of device
Offline Storage Built-in cache, records key data when network unavailable
Ports
VLAN Partition Supported
Port Mirroring Supported
WLAN
Protocol IEEE 802.11 ac/a/b/g/n
Security Shared key, WPA/WPA2 authentication, WEP/TKIP/AES
Network Management
Configuration Local or remote HTTP, HTTPS, Telnet, SSH
Upgrade Local or remote WEB, DM, TFTP, FTP, SFTP server
AAA Local/Radius/TACACS+
Network Diagnostic Ping, Traceroute, Sniffer (network packet capturing tool)
Edge Computing Framework
Edge Computing Platform An edge computing platform integrating network, computing, storage and applications
Edge Computing Engine Python & Docker
SDK Python 3 SDK, Docker SDK and Azure IoT Edge SDK
IDE Visual Studio Code
IoT Architecture Supports MQTT, DDS, AMQP, XMPP, JMS, REST, CoAP
3rd Party Cloud MS Azure, SmartFleet and development APIs for other third-party platforms
Docker Images Node-RED, Ubuntu, Docker for ARM 32, etc.
Application Services
Pulsed Electric Field EN61000-4-4,level 2
Surge EN61000-4-5,level 2
Conducted Disturbance Immunity EN61000-4-6, level 2
Shock Wave Resistance EN61000-4-12, level 2
\
InVehicle G710 Hardware Specifications
Hardware Platform
CPU ARM Cortex A7
RAM Authentication 1GB/512MB DDR3
FLASH 8GB eMMC
WAN Protocol 717MHz

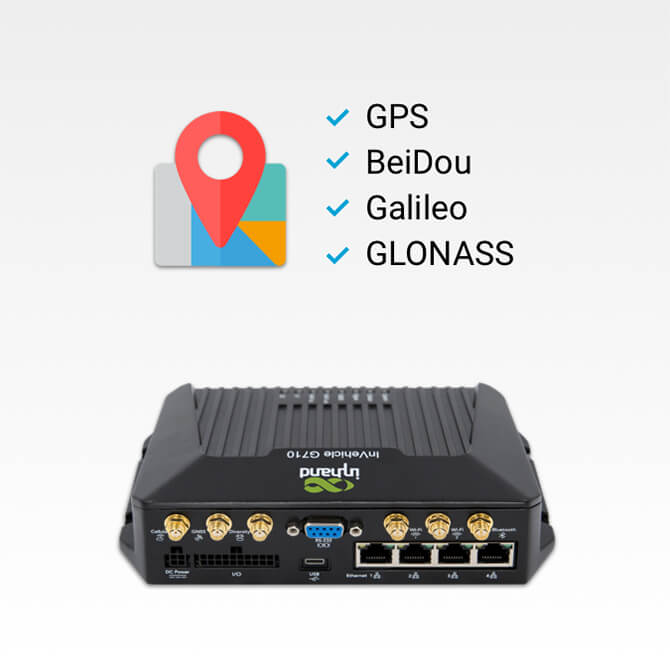

Satellite Navigation
GNSS Receiver GPS, GLONASS, Galileo, Beidou
Built-in Sensor Inertial navigation sensor (accelerometer and gyroscope)
Position Deviation 1.5m (With SBAS)҅2.5m (Autonomous)
Tracking Sensitivity -160dBm
Location Update Rate MAX 10Hz
Interface
Cellular LTE CAT6/ CAT4
Ethernet 4*10/100/1000Mbps RJ45 interface
Serial Port RS232 serial (DB-9)
USB Port USB2.0 ҅Micro-B (Read-write: MAX 480Mbps)
MircoSD Micro SD Card (up to 32GB, 20MB/s)
Bluetooth Bluetooth 4.1
Antenna SMA-K: Cellular, GNSS, Diversity; RPSMA-K: 2*Wi-Fi, BT
Indicator System, LTE, Signal, GNSS, Wi-Fi 2.4G, Wi-Fi 5G, U1, U2
Wi-Fi
Frequency 2.4G / 5GHz dual-band
Protocol Wi-Fi 5
Maximum Output 2.4g:17dBm 5g:17dBm
Working Mode AP /Client
Automotive Interface
DI 6*digital input / 6 ch multiplexing, configurable
AI 6*analog input / 6 ch multiplexing, configurable
DO 4*digital output
Diagnostic Interface CanBus
RS485 RS485 serial (A+, B-, GND)
Other 1 WIRE (driver ID/temperature
Power Supply
Pin Definition V+, V-, ignition signal, NC (4 pins)
Input Voltage 9-36VDC [configurable to 7-36VDC]
Protection Built-in voltage transient protection, with delayed ignition induction
Standby Power 0.006W - monitors ignition signal only; system starts on ignition
Operating Power 12.00W - average when RF module not running at full load
Peak Power 18.20W - peak value when RF module running at full load
Mechanical
Installation Wall-mounting
Protection Rating IP64
SIM Card Slot Dual SIM
SIM Card Spec 2FF
Cooling Radiation cooling
Housing Die-cast aluminum
Dimensions (mm) 186x128.5x48
Real-time Clock Supported
Weight 775g
Mechanical
Operating Temperature -30°C ~ +70°C -22°F ~ +158°F
Humidity 95ѾRH @ 60°C
Storage Temperature -40°C ~ +85°C / -40°F ~ +185°F
Physical
Shock -IEC60068-2-27
Vibration IEC60068-2-6
Fall IEC60068-2-32
Certification CE, FCC, IC, PTCRB, AT&T, E-Mark, RoHS
Gateway Bundle Kit Includes
The G710 router
4x Mounting Bolts
4 wires power cord, 4-pin molex connector, 10 feet (3 meters)
2 x WiFi Paddle Antennas
Bluetooth antenna
20-pin connector to OBD-II harness & 3m CAN bus cable
Puck 4 Antenna (1 GPS + 2 Cellular)
Gateway Kit Includes
The G710 router
4x Mounting Bolts
4 wires power cord, 4-pin molex connector, 10 feet (3 meters)
Installation

Our trained product specialists can work closely with you to determine the best solution for this powerful piece of hardware. Call 1-800-470-6777 or email sales@signalboosters.com.

Frequently Asked Questions

Do I need a data plan for the VG710 to work?

Yes. An AT&T, T-Mobile, or Verizon data plan is required for the VG710 to work. Without a data plan, the VG710 will not be able to access the network to track or provide your vehicle with a reliable connection.

Do I need to use two SIM cards for the VG710 to work?

No. As long as you have one active SIM card, the VG710 will work. However, using two SIM cards will ensure uninterrupted vehicle tracking and network access. If the vehicle is out of range from one network and in range of the other, the VG710 will automatically connect to the most reliable network for constant connectivity.

Is the VG710 strictly for commercial vehicles?

Not necessarily. While the VG710 is designed to simplify fleet management and improve connectivity inside commercial vehicles, such as buses, police cars, ambulances, trains, and the like, it can also be used to blanket RVs, campers, and houseboats with a reliable internet connection
