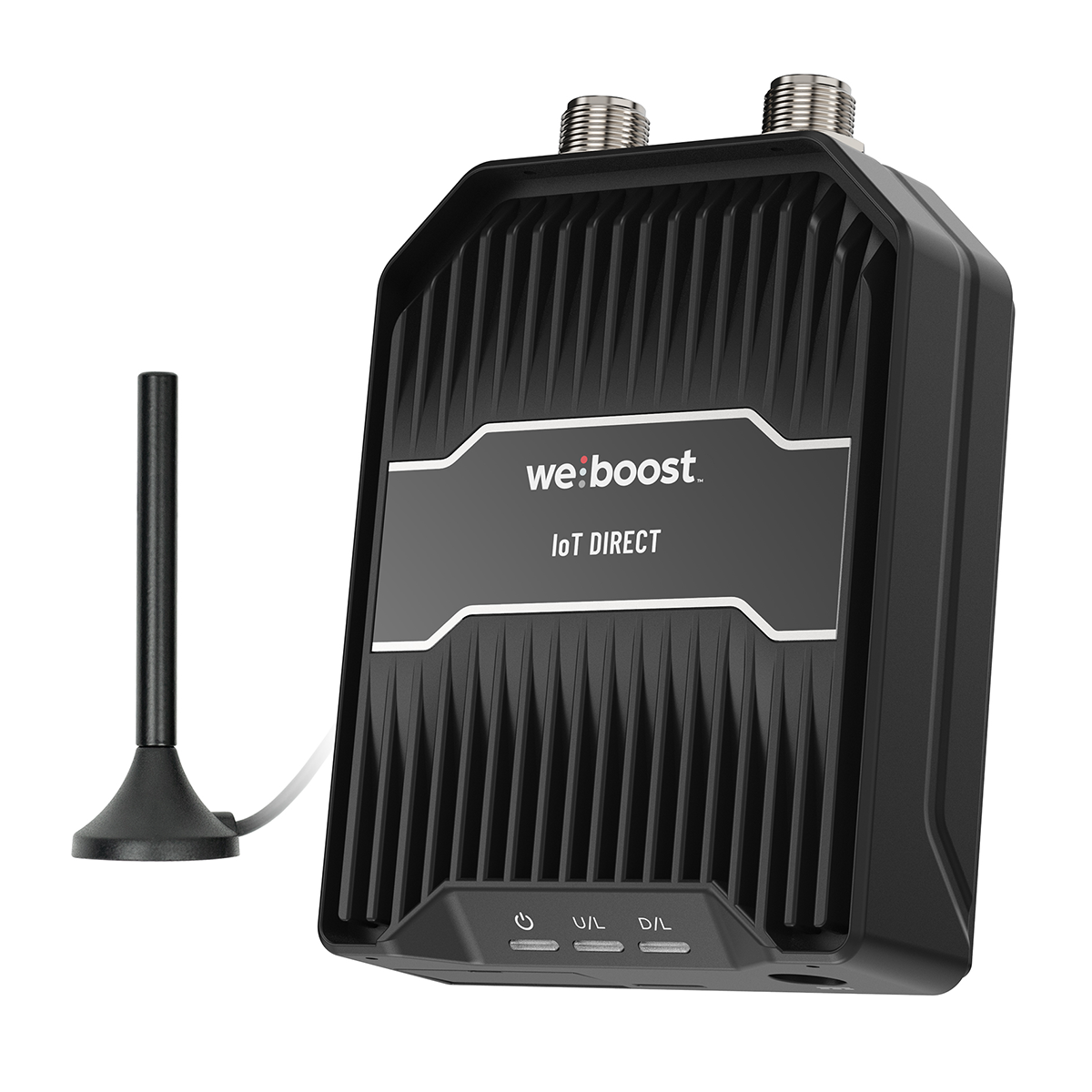

weBoost IoT Direct Connect M2M Cell Signal Booster

About the weBoost IoT Direct

The IoT Direct is a direct-connect signal amplifier built to pair with a cellular data modem and help keep IoT devices online when reception is weak. It’s designed for flexible, real-world deployments—especially in locations where distance to towers, terrain, or building materials like concrete and steel can disrupt reliable data transfer.

Because it’s compatible with all major U.S. carriers, it’s a great fit for mixed-carrier environments and scalable rollouts. And for peace of mind.

On the performance side, it supports wide LTE coverage across 700 / 850 / 1900 / 1700–2100 MHz (Bands 12/17, 13, 5, 25/2, 4) and delivers up to 15 dB max gain with 24 dB max uplink power and -5 dB max downlink power, using a 50-ohm system powered by 12V / 2A.

Who Is It For?

ATMs & Vending Machines
Movie-rental & self-service kiosks
Home or business security systems & security panels
Cellular hotspots

Kit Includes

IoT Direct Amplifier + wall-mount bracket (460079)
Mini Magnet Antenna (301126)
N-male to SMA-Female Adapter (972000)
Adhesive Pad
2 ft SMA to N-male Cable (295802)
1 ft SMA to MMCX Cable (953012)
1 ft SMA to MCX cable (953013)
12V AC/DC power supply (PWR000048)

Technical Specifications

weBoost IoT Direct
SKU	475079
Frequency	Band 17 - 700 MHz Band 13 - 700 MHz Band 5 - 850 MHz Band 4 - 1700/2100 MHz Band 25/2 - 1900 MHz
Max Gain	15 decibels (dB)
Impedance	50 Ohm
Power	12V 2A
Connectors	N-Female
Booster Dimensions	5.4 x 4.2 x 1.4 in.
Booster Weight	1.58 lbs
UPC	81005966498
FCC NOTICE	This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by FCC or a licensed wireless service provider.
WARNING: California's Proposition 65	This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to https://www.p65warnings.ca.gov/.
