  • Wilson Pro 70 Plus Professional Cell Phone Signal Booster Kit 460227

Wilson Pro 70 Plus Professional Signal Booster Kit 75 Ohm with Yagi/Dome Antenna | 460227

    In Stock. Ships the same or next business day.

    SKU:
    WA460227
    $1,799.99

    Wilson Pro 70 Plus Cell Phone Signal Booster Kit (75 Ohm)

    Overview

    The Pro 70 Plus (75 Ohm) from Wilson Electronics amplifies weak cellular signals to provide reliable voice and data coverage – including 4G – inside homes and other buildings where signals may not penetrate. The Pro 70 Plus features a self-optimizing microprocessor with a built-in graphical signal meter. The uplink and downlink power display makes it easy for the integrator to determine the direction of the cell tower and the strength of the available signal, which greatly reduce installation time.

    Like all Wilson boosters, the Pro 70 Plus features cell site protections that prevent any possibility of interference with cell towers. The Pro 70 Plus, and all CI models from Wilson Electronics, are sold only to custom technology integrators and are not available through any online or retail source. Wilson Electronics quality and an industry-leading three year warranty make the Pro 70 Plus the clear choice for the professional technology integrator.

    Features

    • Boosters sold in kits with yagi and dome antennas
    • Expansion kits available for large scale installations
    • Self-optimizing design minimizes installation time
    • Compatible with all North American cellular networks
    • Three year warranty
    • FCC and Industry Canada certified
    • Integrated LCD signal strength meter

    Benefits For Users

    • Faster, cleaner data transfers
    • Strong, reliable connections even in weak signal areas
    • Enhanced indoor coverage area under certain signal conditions
    • Extends battery life of cellular devices

    How Does It Work?

    The PRO Series line of boosters and accessories are high performance indoor cellular signal booster systems designed specifically for custom integration applications. The PRO Series booster kits work with all North American carrier networks and technologies, and are certified to the latest FCC standards. They support multiple simultaneous connections across multiple carriers, and work with all cellular enabled devices.

    PRO Series boosters amplify weak cellular signals to provide reliable voice and data coverage (including 4G) to building interior spaces where cell signals may not otherwise reach. All PRO Series kits ship as a complete system - external and internal antennas, amplifier unit, RG11 coax cable and lightning surge suppressor. The PRO Series’ self-optimizing design minimizes time required for installation and fine tuning. They also features network protections that prevent the possibility of interference with cell towers.

    Kit Includes:

    Wilson Pro 70 Plus (75 Ohm)
    Frequency 698-746 MHz
      746-787 MHz
      824-894 MHz
      1850-1995 MHz
      1710-1755/2110-2155 MHz
    Max Gain 70 decibels (dB)
    Power 110-240 V AC, 50-60 Hz, 20 W
    Connector F-Female

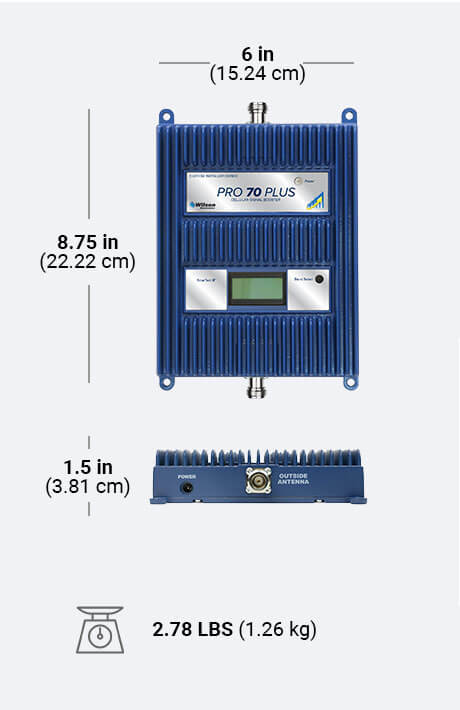

    Dimensions 8.875 x 6.0 x 1.5 in / 22.5 x 15.2 x 3.8 cm
    Weight 2.81 lbs or 1.27 kg
    Integrated Power Meter Yes

    Resources

    Signalboosters.com is an official reseller of WilsonPro. Email us at sales@signalboosters.com or call 1-800-969-8189 if you have any questions or comments. Our friendly Texas-based certified customer support is ready to help and serve.

    Wilson 460127 Pro 70 Plus 75 Ohm Installation GuideInstallation Guide

    This is a CONSUMER device.

    BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.

    • You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
    • You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
    • WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
    • Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.

    There are no fees to register your device. SignalBoosters provides a free service to help you along the way. Our Cell Phone Signal Boosters Registration Page should help get your started.

    buying-guide-excerpt:
    Coverage up to 50,000 sq. ft; Highest downlink power available; Most powerful 4G 75 Ohm system in the market; Built in signal meter; Digital display to view Automatic Gain Control
    Square Footage:
    50000
    product-weight:
    21
    Brand:
    WilsonPro
    UPC:
    811815025283
    Network:
    4G LTE
    Coverage Area:
    Up to 50,000 sq. ft.
